All Coal Furnaces

VF2500

Limited Lifetime Warranty
house icon
Maximum BTUS

90,000

house icon
Heating Area (SQ FT.)

2,600

price icon
MSRP

$5,595.00

The VF2500 and VF2500 Plus stoker furnaces offer convenient, economical, and powerful heating with rice coal. The hopper will hold enough coal to operate the furnace for as long as five days. Coal is fed from the bottom of the hopper by the VertiFlow stoker system. The feed rate is controlled by the ESP based temperature control. This assures that each piece of coal is held at high heat for sufficient time to achieve complete combustion.

Old Fashioned Value

Extended burn times are coupled with intuitive and easily accessible user controls to provide automatic temperature management.

Features:

  • Legacy Stoves lift out grate system
  • Latest Verti-Flow feed system
  • Large ash tub
  • 250 lb hopper
  • Thermostat-based temperature control
  • High-efficiency operation
*Pricing is subject to additional fees and shipping charges*
*Filter Box/Distribution blower sold separately
Where to Buy

Model Specifications

BTU/Hour Input

90,000

Heating Capacity

800 - 2,600 sq ft.

Fuel

Anthracite Rice Coal

Flue Size

6"

Blower Size (CFM)

1,450

Weight

795 lbs.

Domestic Hot Water Coil

N/A

Filter Size

14 x 20 x 1

Fan Control & High Limit

Standard

Thermostat

Standard

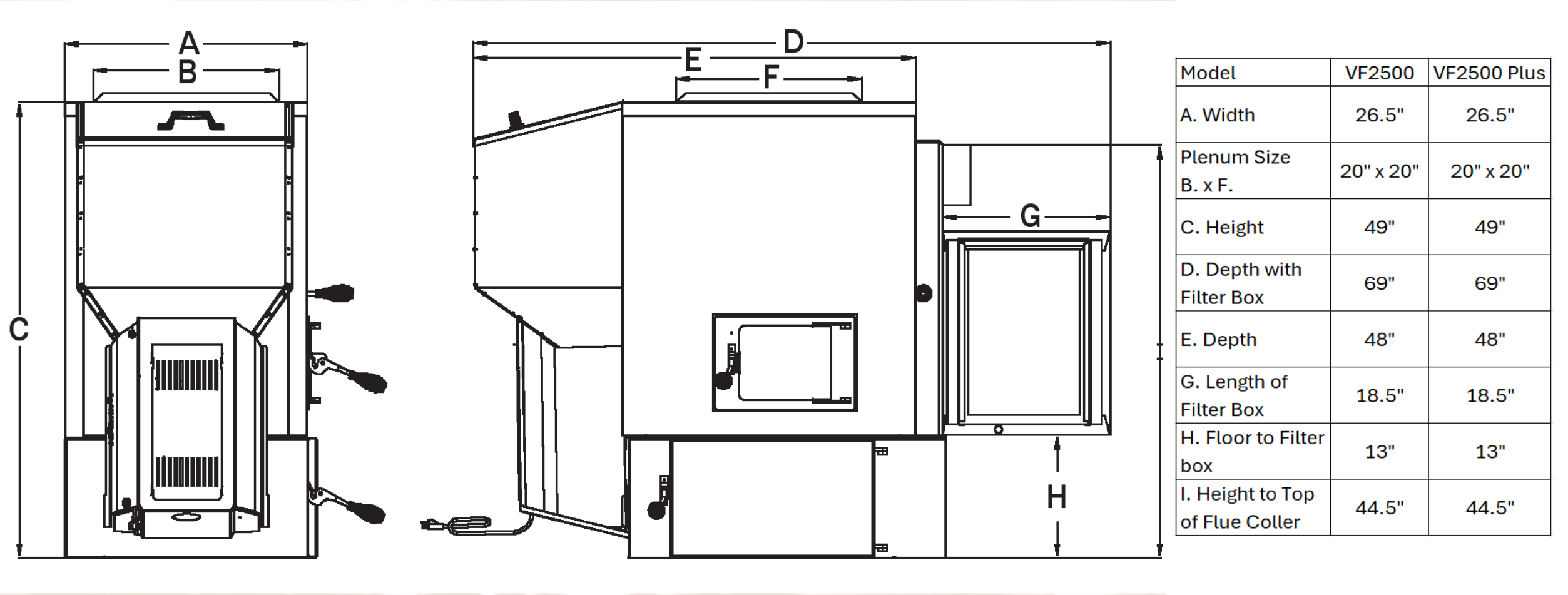

Width

26.5"

Height

49"

Depth

48"

Depth with Filter Box

69"

Plenum Size

20" x 20"

Height to top of flue collar

44.5"

Clearance - right side

36"

Clearance - left side

30"

Clearance - front

36"

Clearance - rear

24"
