All Coal Boilers
SF270

SF270

Limited Lifetime Warranty
house icon
Maximum BTUS

120,000

house icon
Heating Area (SQ FT.)

1,900 - 4,200

price icon
MSRP

$7,353.00

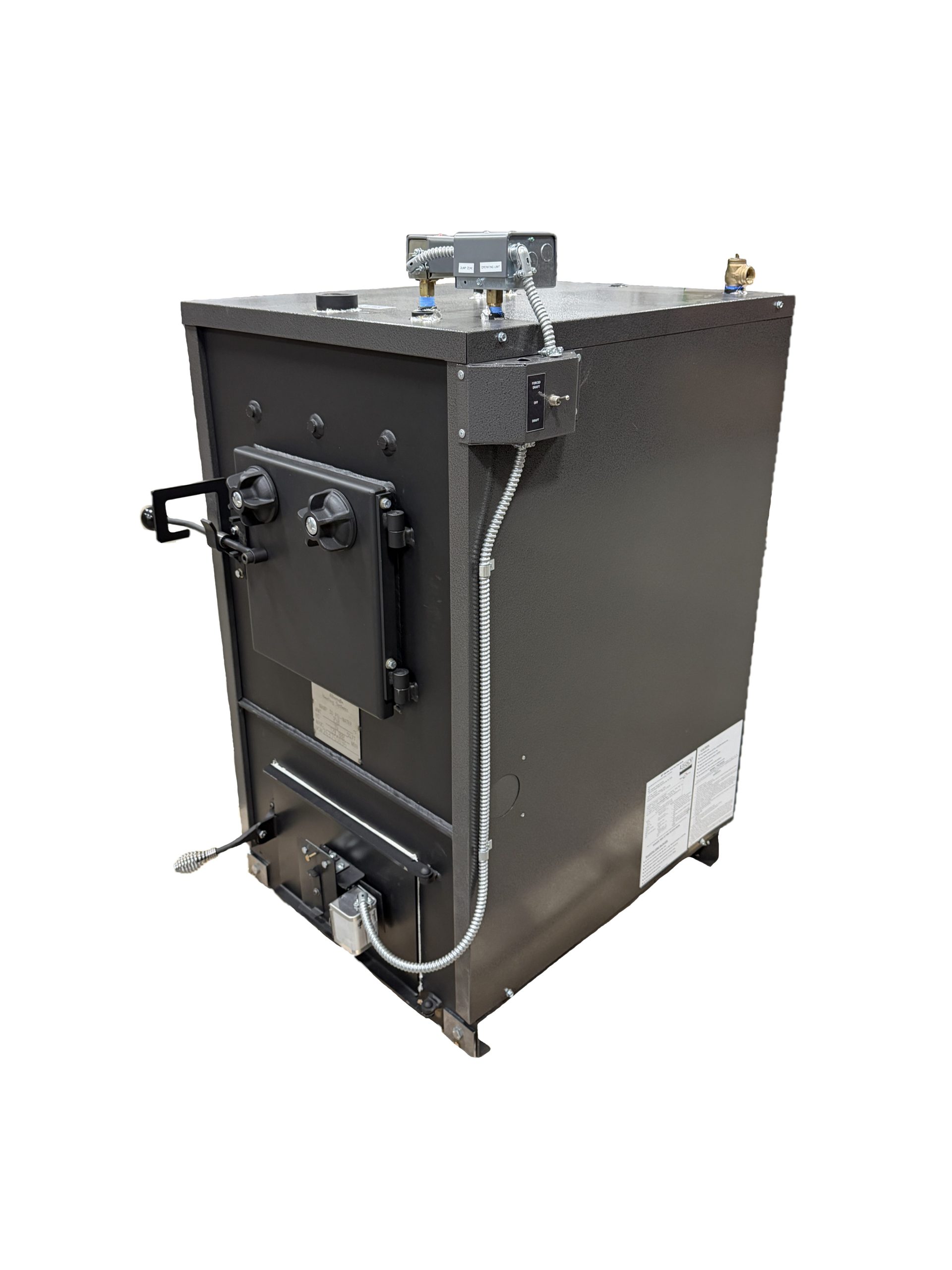

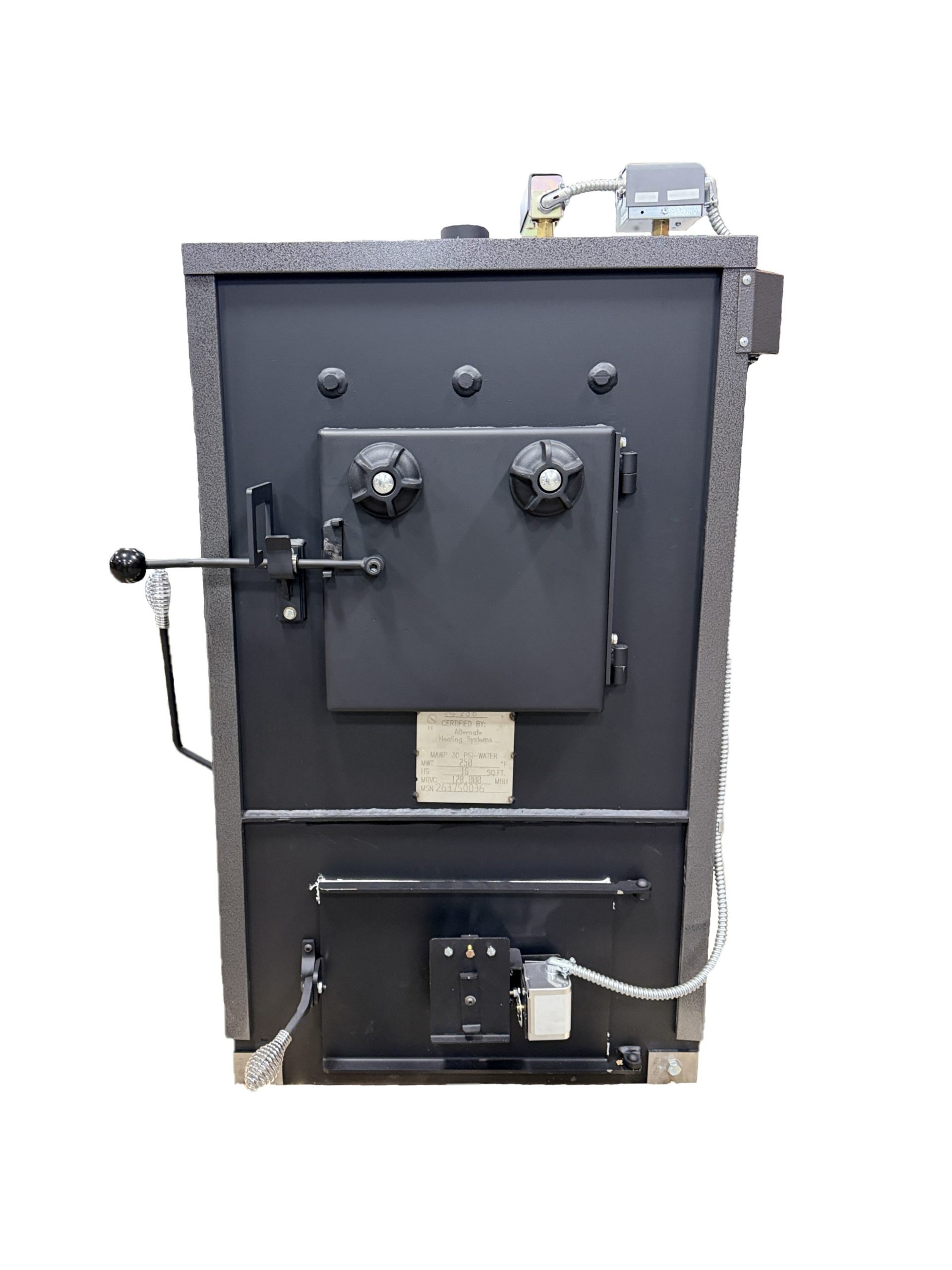

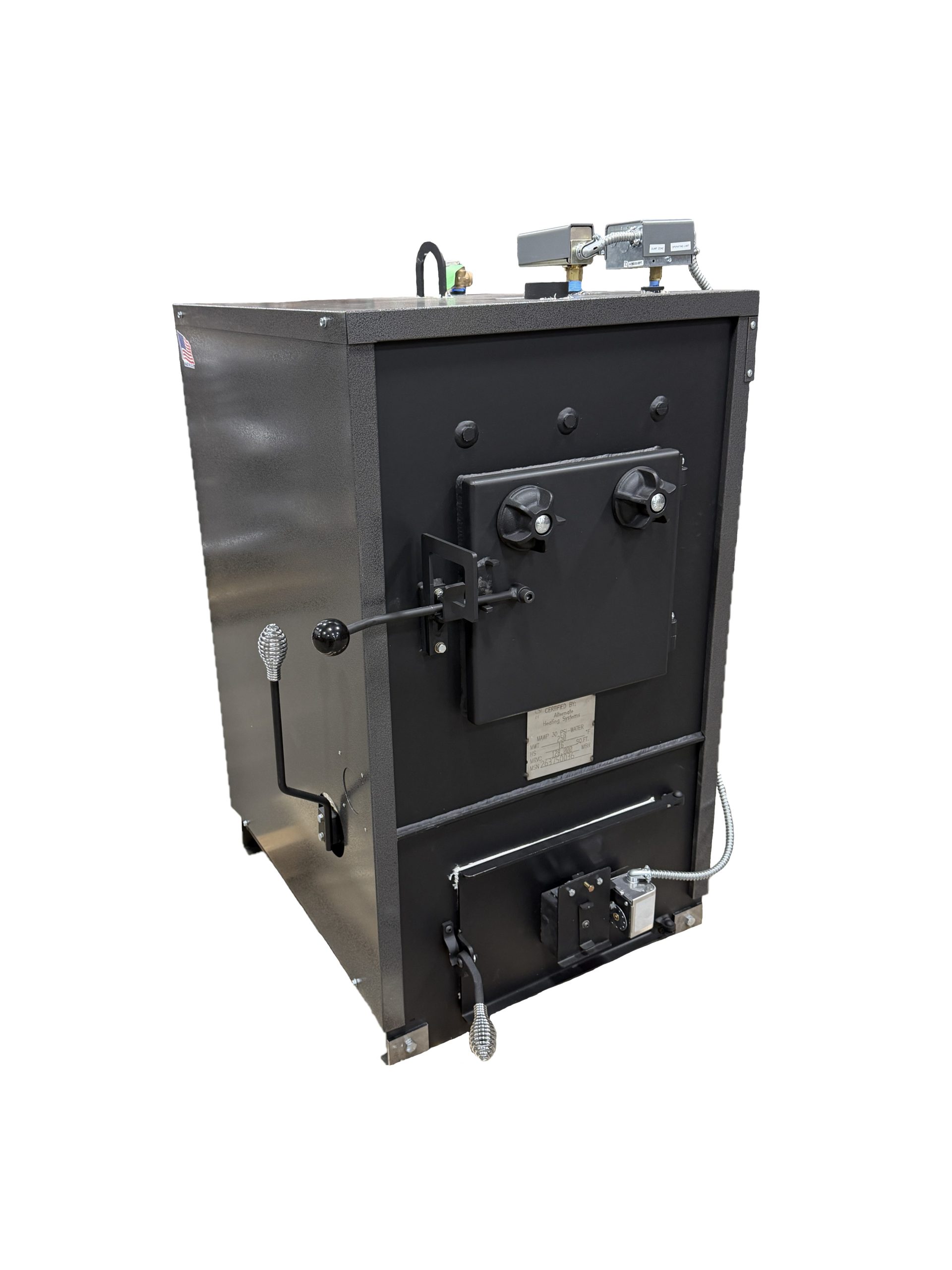

The SF270, an upgraded version of the SF 360 Harman coal boiler, is a flexible, compact, yet powerful heating option that burns up to three different sizes of coal. It can accept up to 120,000 BTU/hr. The SF270 coal boiler also has a domestic hot water coil, allowing you to heat your home’s hot water, giving you and your family an endless hot water supply.

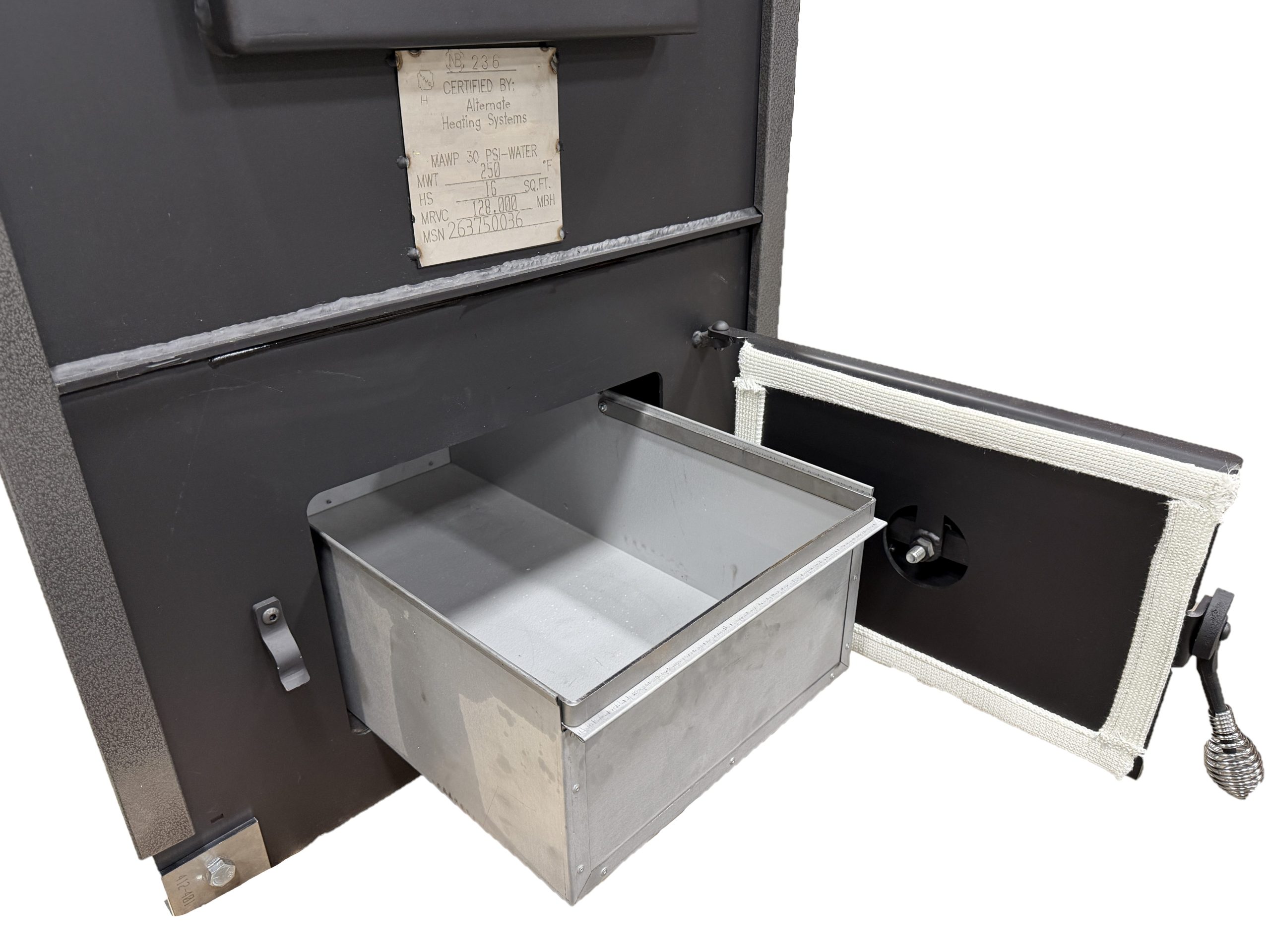

Maintenance on the SF270 is simple. Horizontal water tubes add strength and additional thermal efficiency. A large ash tub provides less frequent ash removal. Intuitive user controls are easily accessible and offer automatic temperature management.

Compare our product weight versus the competition at the same BTU output. We use heavier plates throughout our product lines. Rugged, over-engineered stoves, furnaces, and boilers are a standing tradition for Legacy Stoves. Fuel flexibility is also outstanding, with the option to use pea, nut, or stove-sized anthracite coal. Lump bituminous and graded bituminous coals may also
be used.

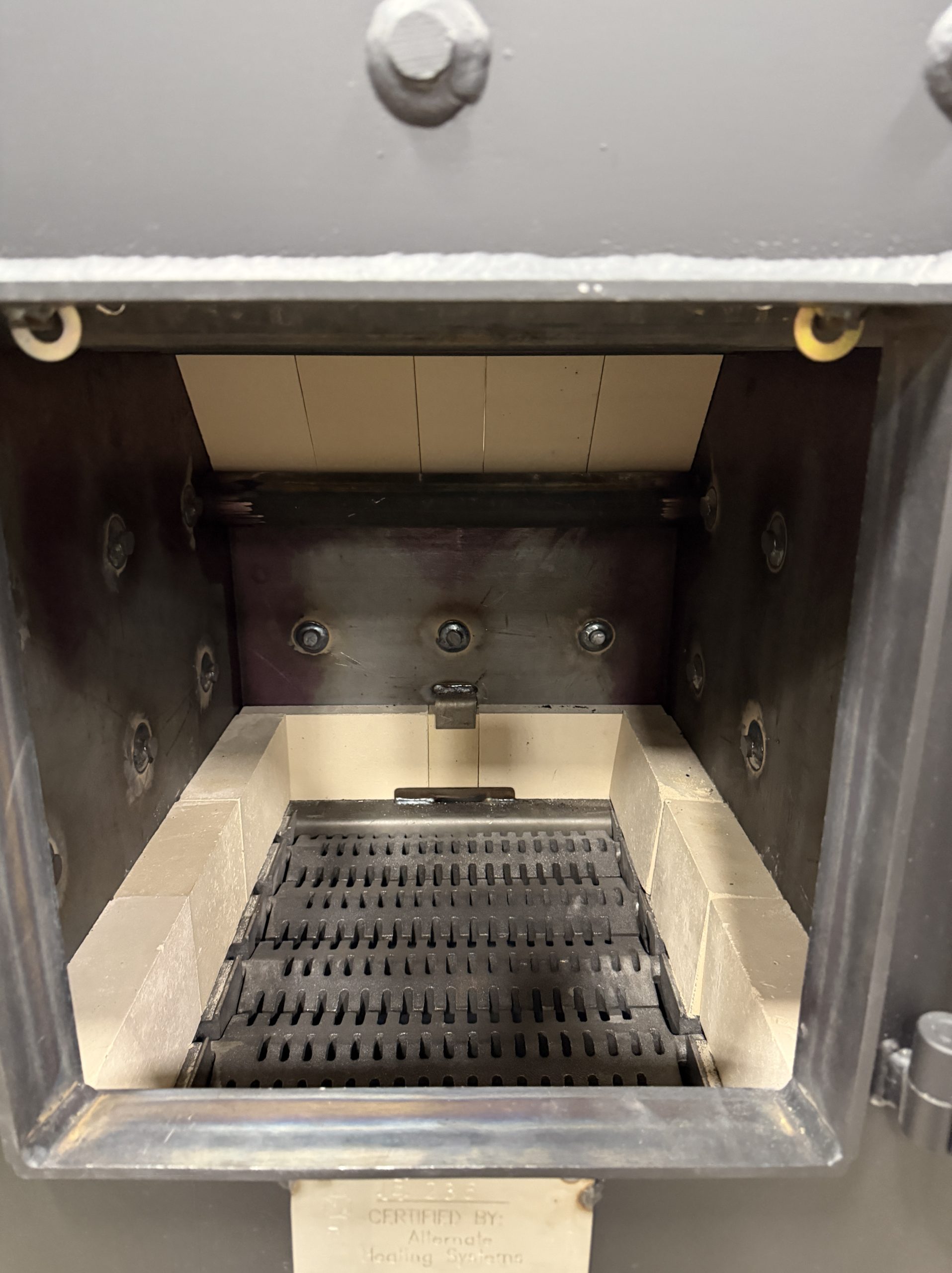

  • Heating is extended by completely burning fuel to a fine ash with the Legacy Grate System
  • 120,000 BTUs — Based on climate and home efficiency, heats 1,900 to 4,200 square feet
  • The heavy-duty water-cooled baffle ensures consistent heat levels
  • Nut, pea, or stove-sized coal
  • New! Listed with Intertek Laboratories (WH mark)!
  • New! Included with ASME H stamp!
  • New! High-quality powder coat finish!
  • New! 55% more heat exchange surface area than the SF260 and 33% more than the SF360 (the SF160/SF260/SF360 are discontinued models)

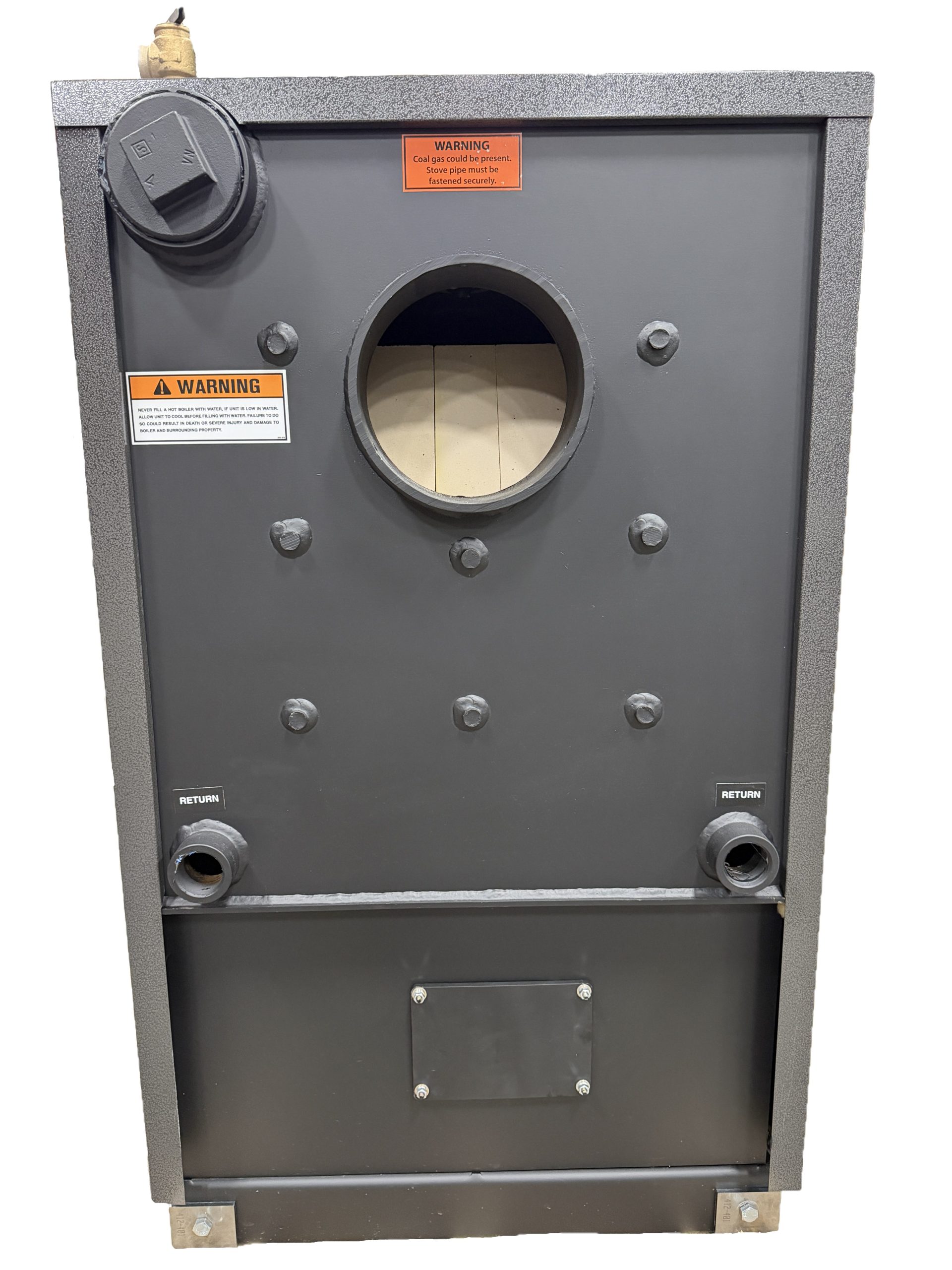

Clearance to Combustibles are as follows: Front: 48″; Sides 18″; and Rear 36″

*Pricing is subject to additional fees and shipping charges*
Where to Buy

Model Specifications

BTU/Hour Input

120,000

Heating Capacity

1,900 - 4,200 sq. ft.

Fuel

Anthracite, Bitumimous (Pea, Nut, Stove, & Lump)

Weight

1,250 lbs

Domestic Hot Water Coil

Optional

Automatic Draft

Standard

Forced Draft Blower

Optional

Non-Electric Conversion

Optional

Flue Size

8"

Number of Grates

5

Firebox Size

D=27 X W=20.5 X H=21

Firebox Cubic Feet

6.5"

Width

28"

Height

52.25"

Depth

33.3"

Height to Top of the Flue Collar

42.5"

Inlet/Outlet Pipe Size

1.5"

Max Water Pressure

30 psi

Certifications

UL/ASME

Efficiency Chart

Based on the used fuel type, the output of heat will vary. And depending on the utilized venting configuration and burned fuel type, the appearance of the ember and flame may vary. The product’s actual appearance, especially the flame may differ from the displayed image. For complete clearance requirements and specifications, please refer to the Owners Manual. Without notice, pricing and product specifications are subjected to change. Please refer to the owners/installation manual for listing information and testing.

*For select products: Heating capacity must be used only as a guide. For assistance in deciding which product is best suited for your needs based on home efficiency and climate, be sure to see your local dealer.

For wood-burning appliances: Based on how the appliance is operated, moisture content and used type of wood, load size, and installation, actual burn time will vary.
