All Coal Boilers
SF170

SF170

Limited Lifetime Warranty
house icon
Maximum BTUS

90,000

house icon
Heating Area (SQ FT.)

1,000 - 3,200

price icon
MSRP

$6,359.00

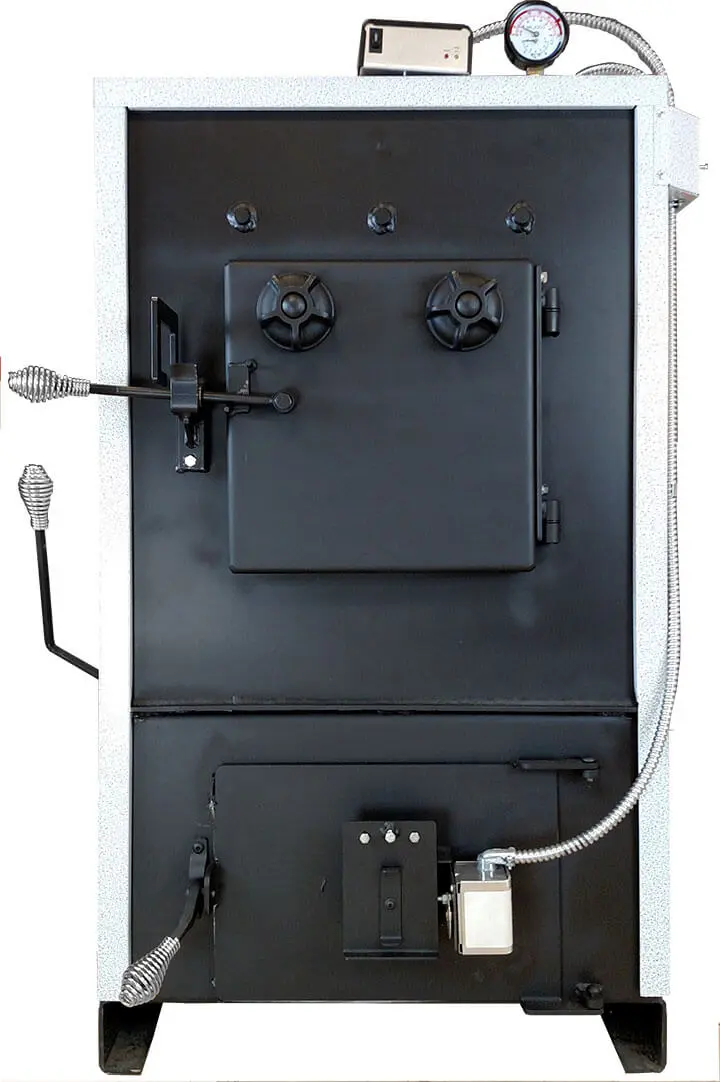

The SF170, the upgraded version of the SF 260 coal boiler, is a flexible, compact, yet powerful heating option that burns up to three different sizes of coal. It also has a domestic hot water coil, allowing you to heat your home’s hot water.

Maintenance on the SF170/270 is simple. Horizontal water tubes add strength and additional thermal efficiency. A large ash tub provides less frequent ash removal. Intuitive user controls are easily accessible and offer automatic temperature management.

Compare our product weight versus the competition at the same BTU output. We use heavier plates throughout our product lines. Rugged, over-engineered stoves, furnaces, and boilers are a standing tradition for Legacy Stoves. Fuel flexibility is also outstanding, with the option to use pea, nut, or stove-sized anthracite coal. Lump bituminous and graded bituminous coals may also
be used.

  • Heating is extended by burning fuel to fine ash completely with the Legacy Grate System
  • 90,000 BTUs — Based on climate and home efficiency, heats 1,000 to 3,200 square feet
  • Consistent heat levels are ensured by the schedule 80 steel pipe water-cooled baffle
  • Domestic coil option
  • Nut, pea, or stove-sized coal + lump bituminous
  • New! Included with WH Certification
  • New! Included with ASME H Stamp
  • New! Increased heat exchange surface area!
  • New! High-quality powder coat finish!

Clearance to Combustibles are as follows: Front: 48″; Sides 18″; and Rear 36″

*Pricing is subject to additional fees and shipping charges*
Where to Buy

Model Specifications

BTU/Hour Input

90,000

Heating Capacity

1,000 - 3,200 sq ft.

Fuel

Anthracite, Bitumimous (Pea, Nut, Stove, & Lump)

Weight

1050 lbs

Domestic Hot Water Coil

Optional

Automatic Draft

Standard

Forced Draft Blower

N/A

Non-Electric Conversion

Optional

Flue Size

8"

Number of Grates

4

Firebox Size

D=22 x W=15.5 x H=19

Firebox Cubic Feet

3.6

Width

26.2"

Height

46.75"

Depth

27.4"

Height to Top of the Flue Collar

36.6"

Inlet/Outlet Pipe Size

1.5"

Max Water Pressure

30 psi

Certifications

UL/ASME

Efficiency Chart

Depending on the used type of fuel, the heat output will vary. Based on the utilized venting configuration and the type of fuel burned, the appearance of the ember and flame may vary. The product’s actual appearance, especially the flame may differ from the displayed image. For complete clearance requirements and specifications, please refer to the Owners Manual. Without notice, pricing and product specifications are subjected to change. Please refer to the owners/installation manual for listing information and testing.

*For select products: Heating capacity must be used only as a guide. For assistance in deciding which product is best suited for your needs based on home efficiency and climate, be sure to see your local dealer.

For wood-burning appliances: Based on how the appliance is operated, moisture content and used type of wood, load size, and installation, actual burn time will vary.
