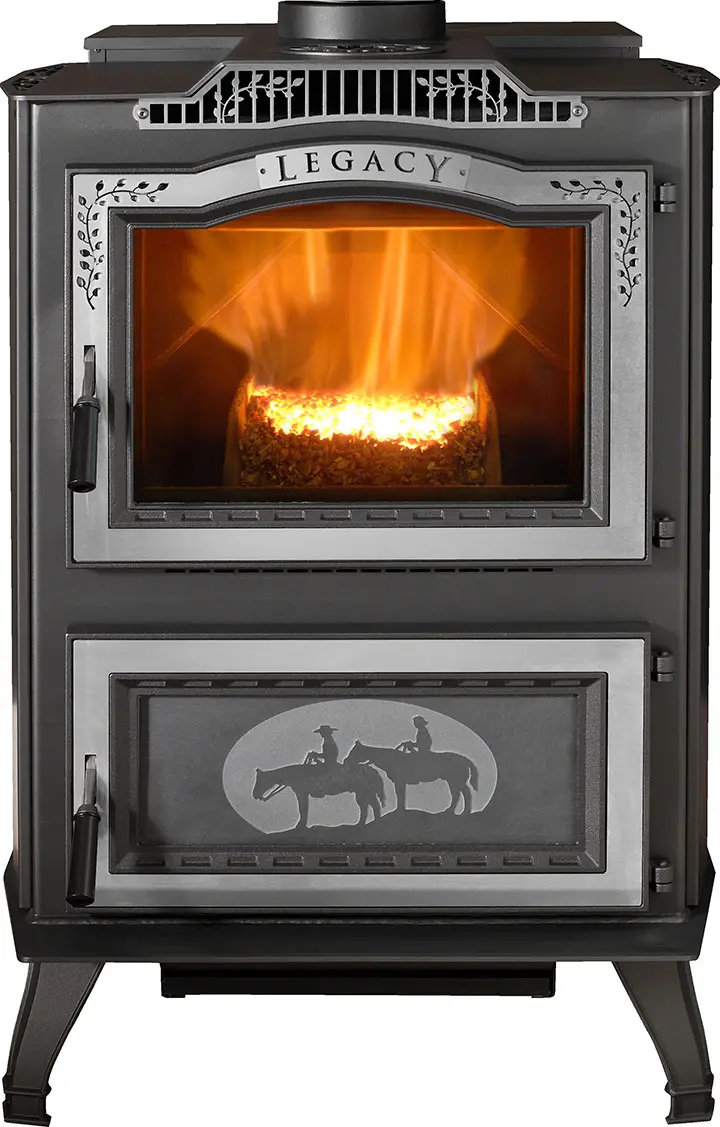

Super Magnum Stoker
Limited Lifetime Warranty
Maximum BTUS
105,000
Heating Area (SQ FT.)
1,000 - 4,000
MSRP
$4,189.00

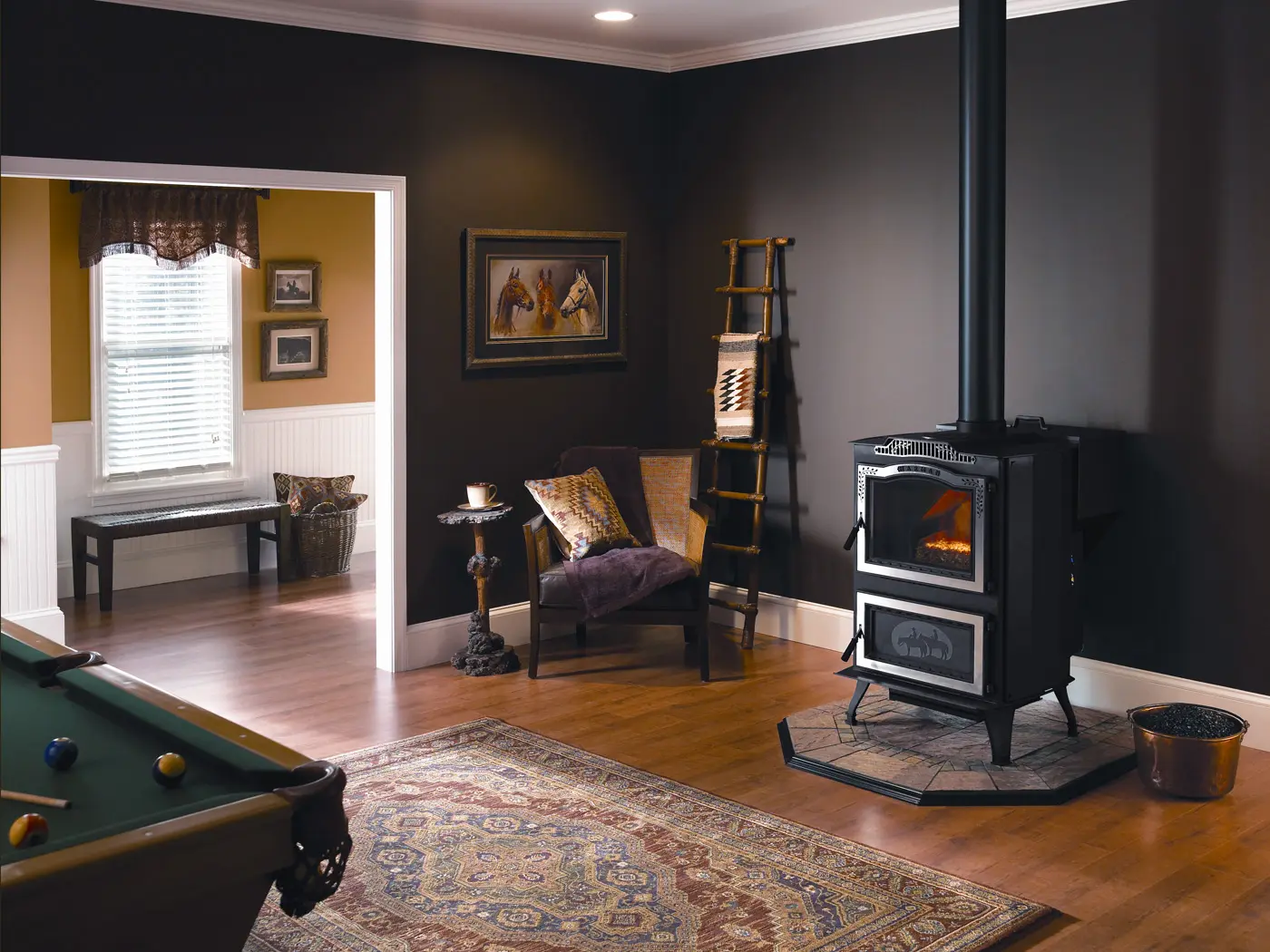

When it comes to coal heating, the Super Magnum Stoker goes above and beyond. Let your heating remain consistent with an advanced blower system and temperature controls. It also allows you to spread warmth to other living spaces with venting options. Moreover, through the large window, you can enjoy the calming view of the coal fire. UL approved for installation in mobile homes.
*shown with optional SS trim kit and slate tile
*Pricing is subject to additional fees and shipping charges*
*Price includes temporary steel surcharge*
Domestically discovered more than 200 years ago in Pennsylvania, Anthracite coal is compact, dense, and known for having few impurities. Its low sulfur and high carbon content help make it exceptionally clean-burning and smoke-free.
Even better, Anthracite is less expensive than oil, less labor-intensive than firewood, and burns cleaner than both. Virtually no smoke or emissions are produced, and ashes can be safely recycled back into the environment, helping aerate soil or used as anti-skid material.
Where to Buy
Vert-Flow Coal Stoker

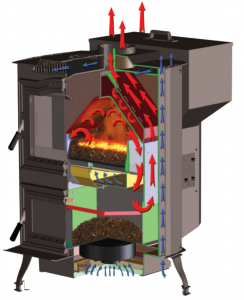

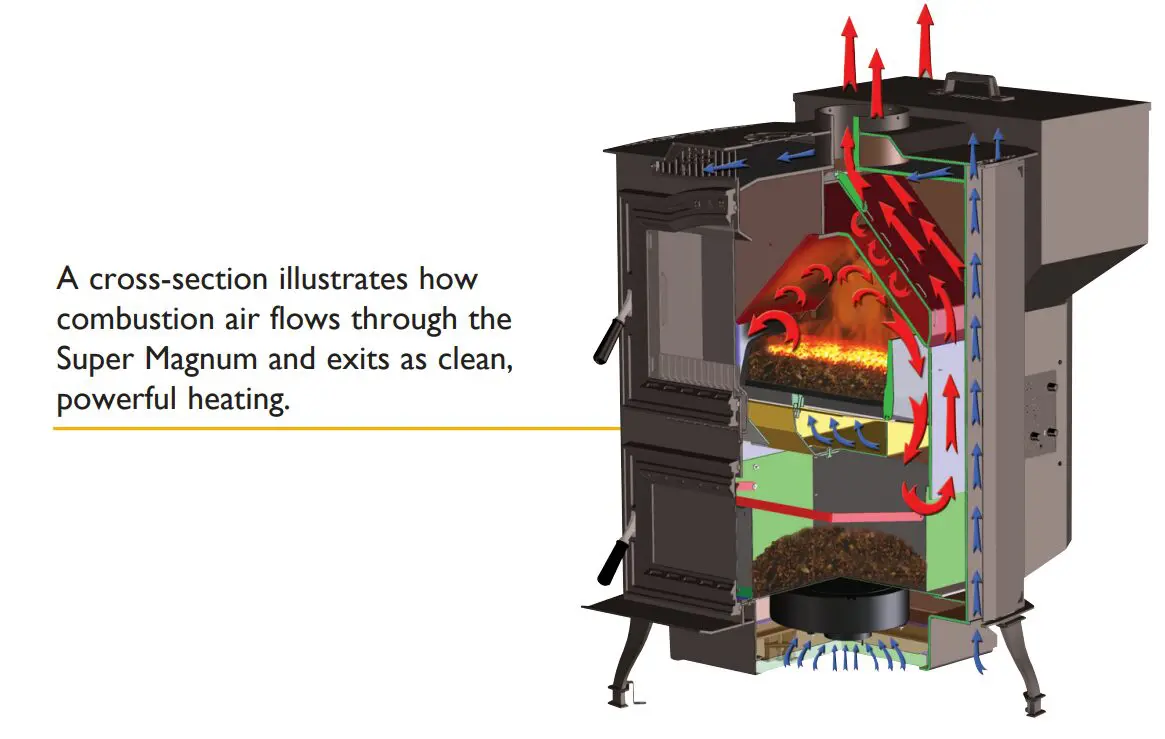

Each piece of coal is burnt thoroughly and completely with the VertiFlowTM Stoker System. Amazing fire control, impressive burn times, and maximum heat are the trademarks of the VertiFlowTM stoker system. From the hopper, coal is fed and controlled automatically depending on the demands of the heating. This enables fuel to remain in extreme heat during the burn cycle. As a result, greater heating efficiency and less ash.

Exhaust Sensing Probe Technology
Theadvanced Exhaust Sensing Probe (ESP) system is used by the Super Magnum Coal which delivers heating control with precision. To maintain set temperatures within 1 degree, the ESP system regularly monitors and changes the output of the heat accordingly.

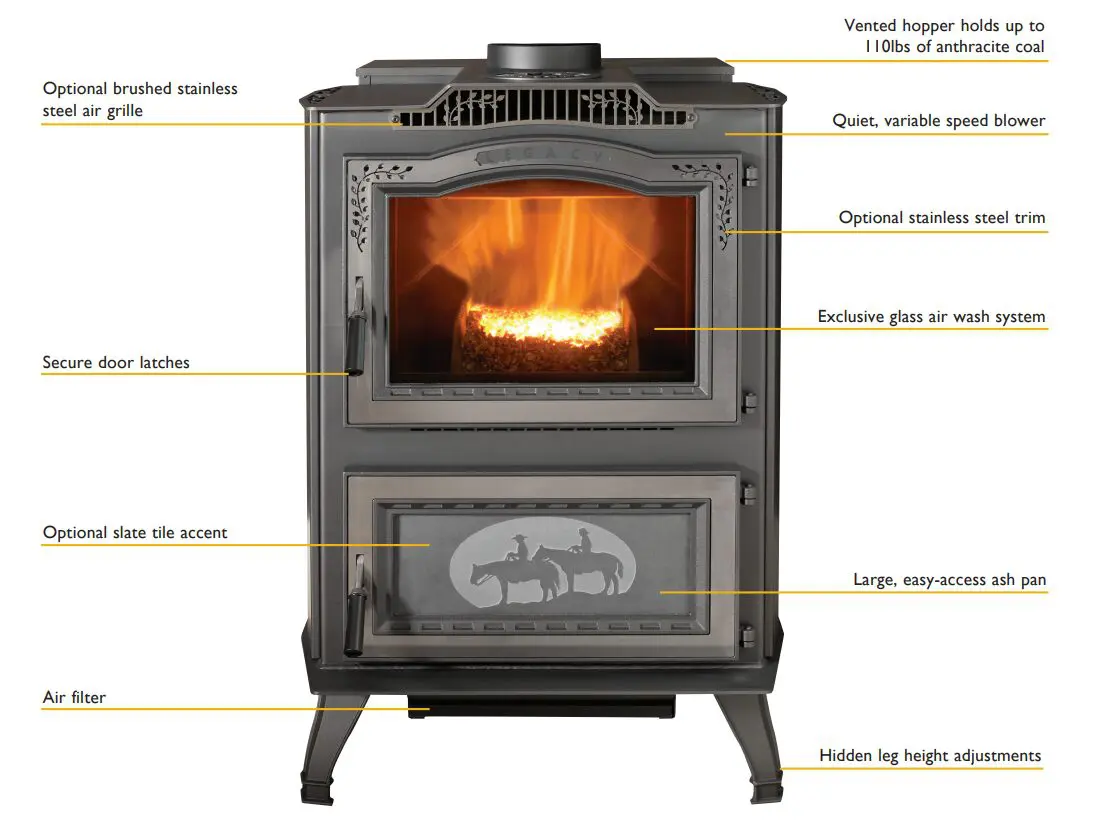

110lbs Hopper
The large hopper gives you up to 100 hours of burn time per filling. Stainless steel hopper upgrade available.
Air Filter
An air filter located underneath the Super Magnum ensures the highest quality of air is circulated throughout your home.
Variable Speed Blower
With the combination of the ESP technology and a quiet, variable-speed blower the Super Magnum is guaranteed to give your home even heat all day long.
Hidden Leg Height Adjustment
The hidden leg height adjustment enables the installer to quickly level the Super Magnum without the use of ugly shims.
Model Specifications
BTU Hour/Input
5,000-105,000
Heating Capacity
2,000-5,300 sq ft.
Burn Time (Max)
100 hours
Fuel Type
Anthracite Rice Coal
Flue Size
6 inches
Blower Size
135CFM
Weight (Standard)
543lbs.

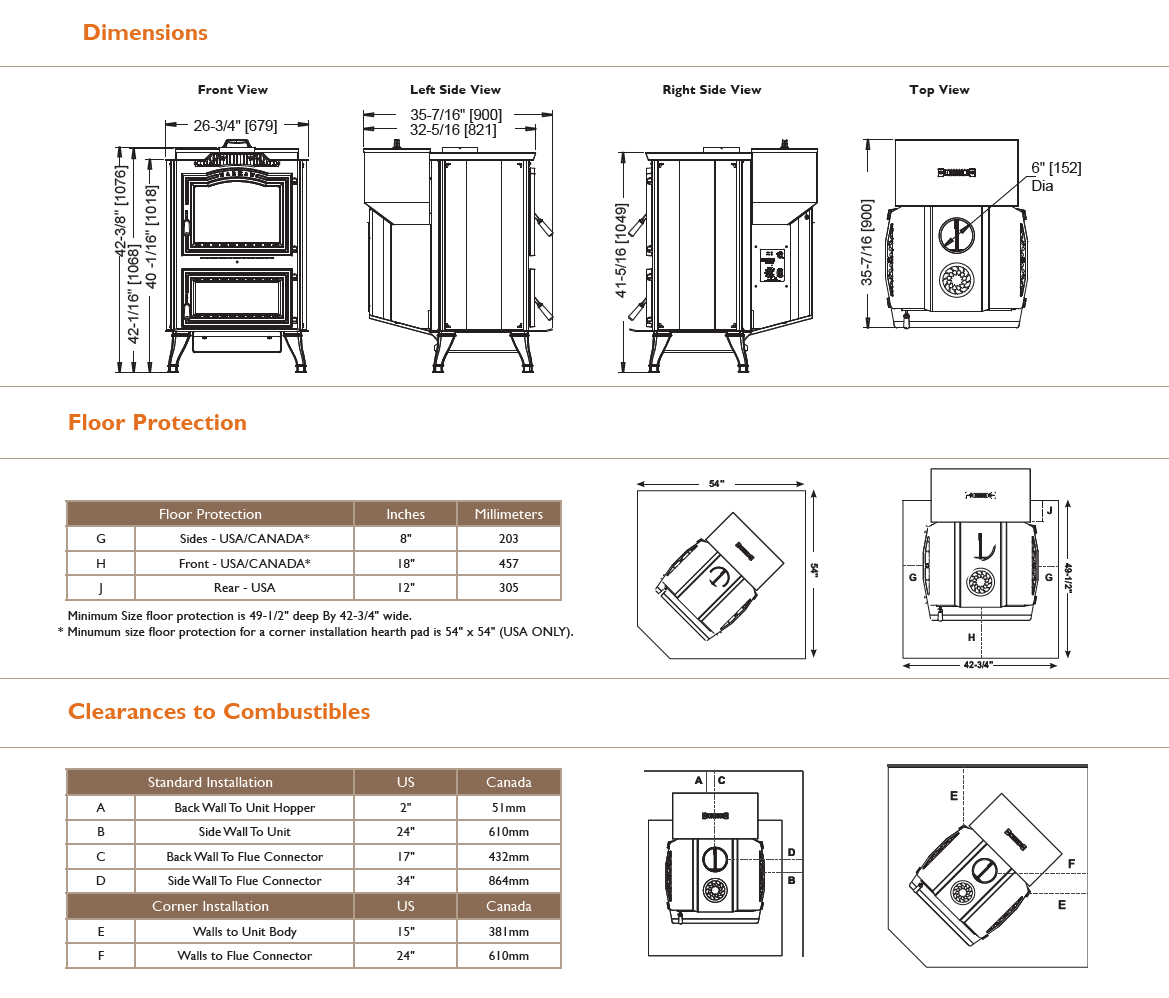

Depth
35 3/8"
Front Width
26 11/16"
Height
42"
Efficiency Chart
Depending on the used type of fuel, the heat output will vary. Based on the utilized venting configuration and the type of fuel burned, the appearance of the ember and flame may vary. The product’s actual appearance, especially the flame may differ from the displayed image. For complete clearance requirements and specifications, please refer to the Owners Manual. Without notice, pricing and product specifications are subjected to change.
*Please refer to the owners/installation manual for listing information and testing. *For select products: Heating capacity must be used only as a guide. For assistance in deciding which product is best suited for your needs based on home efficiency and climate, be sure to see your local dealer.
†For wood-burning appliances: Based on how the appliance is operated, moisture content and used type of wood, load size, and installation, actual burn time will vary.
- Stainless steel hopper
- Brushed stainless steel trim kit
- Decorative slate tiles – Available styles include Deer and Trail Riders

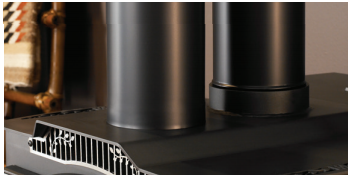

- Heat transfer kit
- Battery backup

Super Magnum Stoker Replacement Parts, TLC 2000 Replacement Parts, Doors
1-10-02748 Door Assembly TLC/SMS

Super Magnum Stoker Replacement Parts, Hoppers
1-10-02733 Hopper Assembly with Lid (SMS) painted black

Super Magnum Stoker Replacement Parts, TLC 2000 Replacement Parts, Doors, Glass
3-40-02749 Glass with Arch

Super Magnum Stoker Replacement Parts, TLC 2000 Replacement Parts, Gasket
3-44-00888 Load Door (4) Strand Gasket 3/8 (TLC/SMS/44MAG)

Super Magnum Stoker Replacement Parts, Hoppers
1-10-02734 Hopper Assembly Without Lid (SUPER MAGNUM)

Super Magnum Stoker Replacement Parts
1-00-02768A Heat Transfer Kit (SMS)

Super Magnum Stoker Replacement Parts, Doors, Handles / Hardware, Kits
1-00-27713A Handle Kit

Blowers, Magnum Stoker, Super Magnum Stoker Replacement Parts
2-00-01023B-A Blower Restrictor Plate

3-20-02778 Red/White ESP Probe (SMS)

3-20-00906 Room Sensor – SMS/DVC500

Magnum Stoker, Super Magnum Stoker Replacement Parts, VF Furnaces Replacement Parts, Grates
4-00-00046D Grate Insert

Ash Pans, Super Magnum Stoker Replacement Parts
1-10-02736 Ash Pan

Doors
Stainless Steel Trim Kit (SMS)
